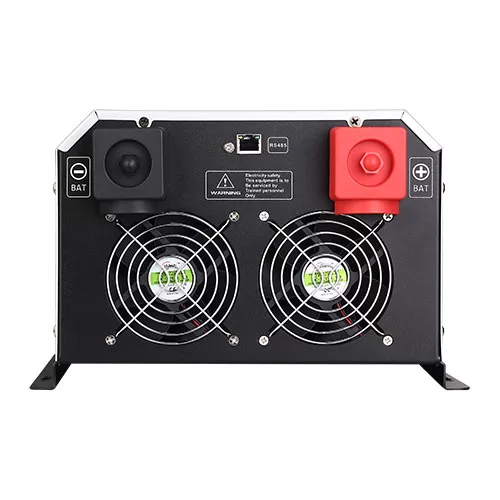

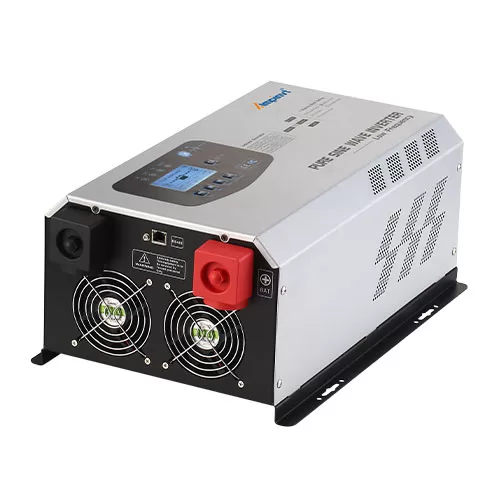

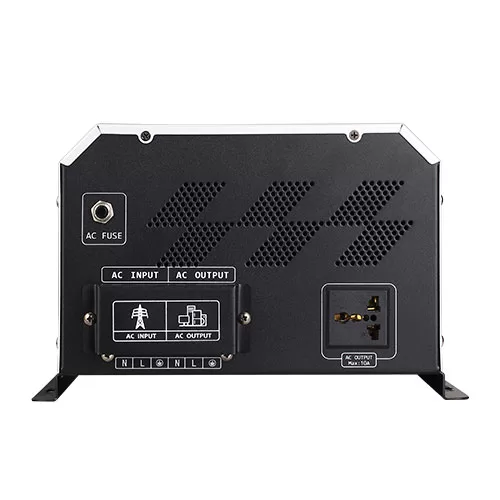

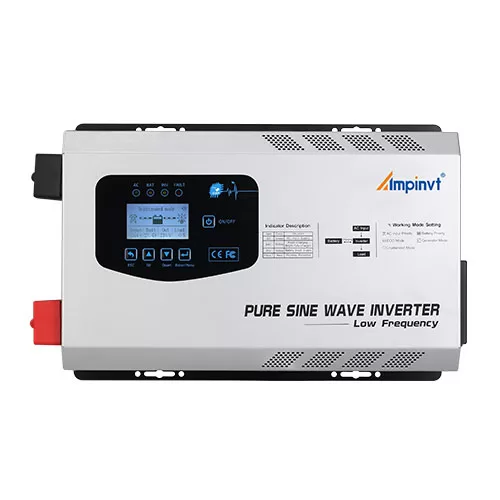

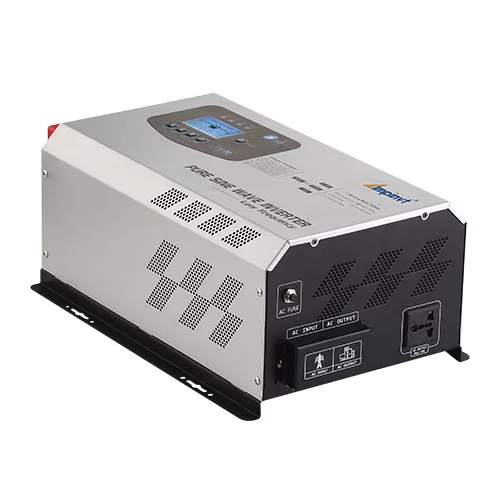

Ampinvt FT Series Low Frequency Pure Sine Wave Inverter

Ampinvt FT Series Low Frequency Pure Sine Wave Inverter
Ampinvt FT Series Low Frequency Pure Sine Wave Inverter
Ampinvt FT Series Low Frequency Pure Sine Wave Inverter
Ampinvt FT Series Low Frequency Pure Sine Wave Inverter
Ampinvt FT Series Low Frequency Pure Sine Wave Inverter
Ampinvt FT Series Low Frequency Pure Sine Wave Inverter

1. Low frequency pure sine wave output.
2. Battery voltage: 12V/24V/48V.
3. Built-in automatic 35A AC charger.
4. High transfer efficiency is above 85%.
5. Built-in Toroidal transfermer, strong overload and impact resistance.
6. 5 working model can be select, charge current can be adjusted.
7. Compatible with sealed, gel, flooded, and lithium batteries.

color:
INQUIRY
  • Description
  • Feature
  • Videos
  • FAQs
  • Download

Intelligent Control

  • Five smart control mode, auto switch for different demand.
  • RS485 communicational portal, for app & external screen control.

High Efficiency

  • Inverter transfer efficiency up to 85%.

Charger

  • Inbuilt 35A AC charger.

Model

FT-102

FT-152

FT-202

FT-302

FT-402

FT-502

FT-602

Rated power 1KW 1.5KW 2KW 3KW 4KW 5KW 6KW
Surge power 3KW 4.5KW 6KW 9KW 12KW 15KW 18KW

AC Input & Output

Voltage 220VAC
Selectable Voltage Range 165-275VAC (220VAC)
Frequency Range 50Hz/60Hz automatic recognition
AC Voltage Regulation
(BATT. Mode)
(DC Batt.mode)220vac±3%
Transfer Time ≤4ms
Wave Form Pure Sine Wave
Transformer type Toroidal
Transfer efficiency ≥85%

Battery

Battery Voltage 12V/24V 12V/24V/48V 24V/48V
Type Gel/SLA/AGM/Water/Lithium(lifepo4)  Battery
DC Charge Voltage 12~16VDC(12V)/20~32VDC(24V)/40~64VDC(48V)
Overcharge Protection Battery voltage ≧16VDC (12V) ≧32VDC (24V) ≧64VDC (48V), stop charging after 60s alarm

AC Charger

Maximum Ac Charge Current 35A (adjustable)

Working Mode

01 mode AC mains priority  mode
02 mode ECO mode
03 mode DC battery priority mode
04 mode Generator mode
05 mode Unattended mode

Communication Port

Type RS485, available for wifi box  & external control screen

Physical

Dimension,
D*W*H(MM)
600*380*170 780*380*280
G.W.(KGS) 15 17 19 21 31 33 35

Environment

Humidity 0~95%(NO CONDESNSATION)
Operating Temperature 0~60℃
Storage Temperature 0~60℃
*Product Specifications Are Subject To Change Without Further Notice

Q1: Does Your Company Also Provide Other Solar Products Except Pure Sine Wave Inverter?

A1: Yes, we also provide other solar products, like MPPT Solar Controller, off grid solar inverter, low frequency & high frequency inverter, battery ,solar panel and other accessories related to the solar power system.

Q2: How to Choose a Right Inverter?

A2: Tell us your demand, then our sales will recommend a suitable inverter to you.

Q3: How About the Delivery Time?

A3: 5 days for sample; 7-15 days for bulk order.

Q4: What Is the Warranty of Inverter?

A4: 2 year warranty.

Q5: How to Solve the Technical Problem?

A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
