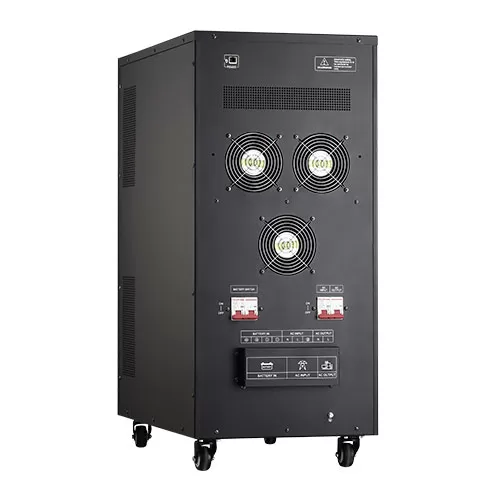

Ampinvt TD Series Solar Inverter

Ampinvt TD Series Solar Inverter
Ampinvt TD Series Solar Inverter
Ampinvt TD Series Solar Inverter

1. Low frequency pure sine wave output.
2. Battery voltage: 48V/96V/192V/240V.
3. Built-in automatic 20A AC charger.
4. High transfer efficiency is above 85%.
5. Built-in Toroidal transfermer, strong overload and impact resistance.
6. 5 working model can be select, charge current can be adjusted.
7. Compatible with sealed, gel, flooded, and lithium batteries.

  • Description
  • Feature
  • Videos
  • FAQs
  • Download

Intelligent Control

  • Five smart control mode, auto switch for different demand.
  • RS485 communicational portal, for app & external screen control.

High Efficiency

  • Inverter transfer efficiency up to 85%.


  • Inbuilt 20A AC charger.







Rated power 7KW 10KW 15KW 20KW 30KW
Surge power 21KW 30KW 45KW 60KW 90KW

AC Input & Output

Voltage 220VAC
Selectable Voltage Range 165-275VAC (220VAC)
Frequency Range 50Hz/60Hz automatic recognition
AC Voltage Regulation
(BATT. Mode)
(DC Batt.mode)220vac±3%
Transfer Time ≤8ms
Wave Form Pure Sine Wave
Transformer type Toroidal
Transfer efficiency ≥85%


Battery Voltage 48/96VDC 192V 240V
Type Gel/SLA/AGM/Water/Lithium(lifepo4)  Battery
DC Charge Voltage 40~64VDC(48V)/ 80~128VDC(96V) 160~256VDC(192V) 200~320VDC(240V)

AC Charger

Maximum Ac Charge Current 20A

Communication Portal

Type RS485, available for wifi box  & external control screen


640*400*820 640*400*820 750*450*1000 760*460*1050
G.W.(KGS) 75 80 85 91 153


Humidity 0~95%(NO CONDESNSATION)
Operating Temperature 0~60℃
Storage Temperature 0~60℃
*Product Specifications Are Subject To Change Without Further Notice

Q1: Does Your Company Also Provide Other Solar Products Except Pure Sine Wave Inverter?

A1: Yes, we also provide other solar products, like MPPT Solar Controller, off grid solar inverter, low frequency & high frequency inverter, battery ,solar panel and other accessories related to the solar power system.

Q2: How to Choose a Right Inverter?

A2: Tell us your demand, then our sales will recommend a suitable inverter to you.

Q3: How About the Delivery Time?

A3: 5 days for sample; 7-15 days for bulk order.

Q4: What Is the Warranty of Inverter?

A4: 2 year warranty.

Q5: How to Solve the Technical Problem?

A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
