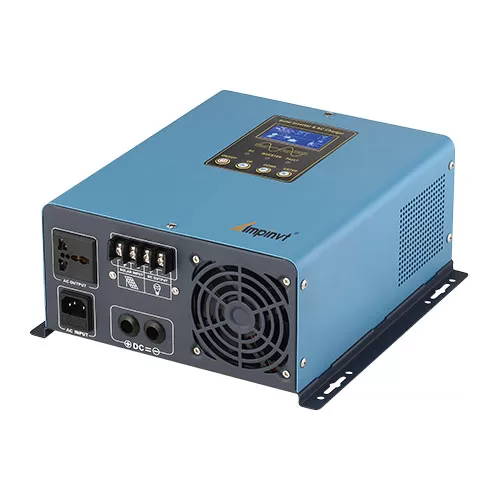

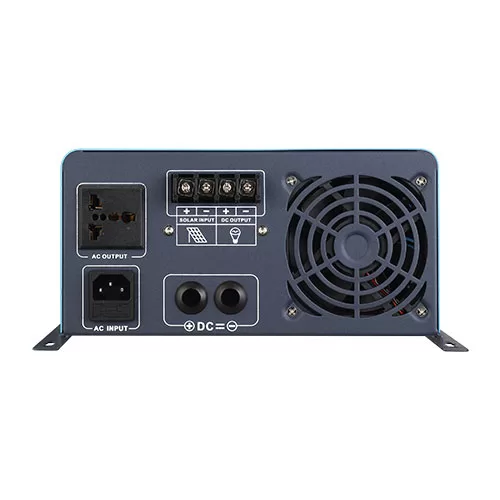

Ampinvt HSI Series Solar Inverter & AC Charger

Ampinvt HSI Series Solar Inverter & AC Charger
Ampinvt HSI Series Solar Inverter & AC Charger
Ampinvt HSI Series Solar Inverter & AC Charger
Ampinvt HSI Series Solar Inverter & AC Charger

1. Low frequency pure sine wave output.
2. Built-in automatic 15A AC charger and automatic AC mains switcher.
3. Built with 20A/30A PWM.
4.Battery voltage: 12V/24V.
5. High transfer efficiency is above 85%.
6. Built-in Toroidal transfermer, strong overload and impact resistance.
7. 3 working model can be select, charge current can be adjusted.
8. Compatible with sealed, gel, flooded, and water batteries.

  • Description
  • Feature
  • Videos
  • FAQs
  • Download

Stable & Durable

  • Latest toroidal transformer could handle triple surge power.
  • Inbuilt AVR stablizer for stable output.

High Efficiency

  • Inverter transfer efficiency up to 85%.


  • Inbuilt 15A AC charger.
  • Inbuilt 20A / 30A PWM solar charger.








Rated power 350W 500W 600W 800W 1000W 1200W
Surge power 1050W 1500W 1800W 2400W 3000W 3600W

AC Input & Output

Voltage 220VAC
Selectable Voltage Range 165-275VAC (220VAC)
Frequency Range 50Hz/60Hz automatic recognition
AC Voltage Regulation
(BATT. Mode)
(DC Batt.mode)220vac±3%
Transfer Time ≤8ms
Wave Form Pure Sine Wave
Transformer type Toroidal
Transfer efficiency ≥85%


Battery Voltage 12V 12V/24V
Type Gel/SLA/AGM/Water battery
DC Charge Voltage 13.8VDC(12V)/27.6VDC(24V)
Overcharge Protection Battery voltage ≧16VDC (12V) ≧32VDC (24V), stop charging after 60s alarm

Solar Charge & Ac Charger

Maximum PVArray Open Circuit Voltage Max. 30V(12V) / 50V (24V)
Maximum Pv Array Power 450W(12V)/900W(24V)
Maximum Ac Charge Current 15A
Maximum Solar Charge Current 20A PWM 30A PWM
Maximum Charging Current 35A 45A

Working Mode

01 mode AC mains priority
02 mode ECO mode
03 mode DC battery priority


G.W.(KGS) 8.5 8.5 9 9 10 10


Humidity 0~95%(NO CONDESNSATION)
Operating Temperature 0~60℃
Storage Temperature 0~60℃
*Product Specifications Are Subject To Change Without Further Notice

No information.

Q1: Does Your Company Also Provide Other Solar Products Except Pure Sine Wave Inverter?

A1: Yes, we also provide other solar products, like MPPT Solar Controller, off grid solar inverter, low frequency & high frequency inverter, battery ,solar panel and other accessories related to the solar power system.

Q2: How to Choose a Right Inverter?

A2: Tell us your demand, then our sales will recommend a suitable inverter to you.

Q3: How About the Delivery Time?

A3: 5 days for sample; 7-15 days for bulk order.

Q4: What Is the Warranty of Inverter?

A4: 2 year warranty.

Q5: How to Solve the Technical Problem?

A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
