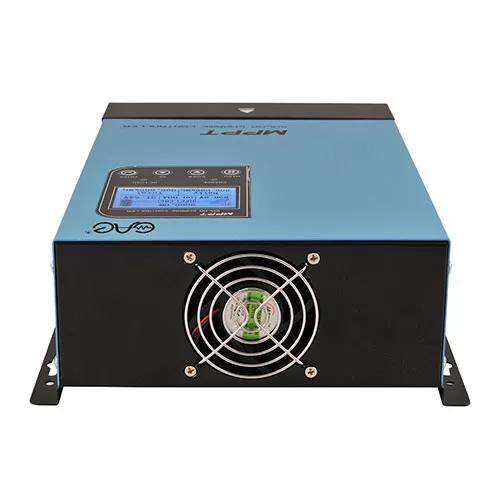

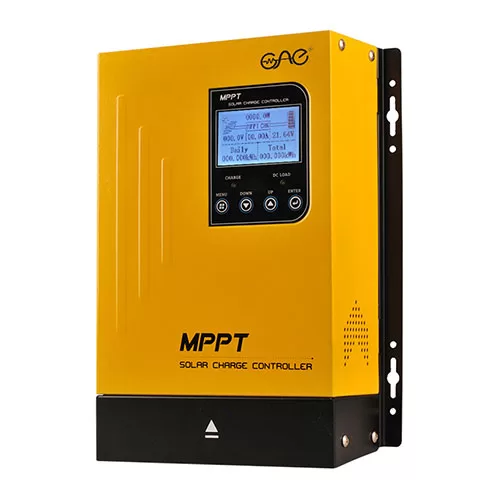

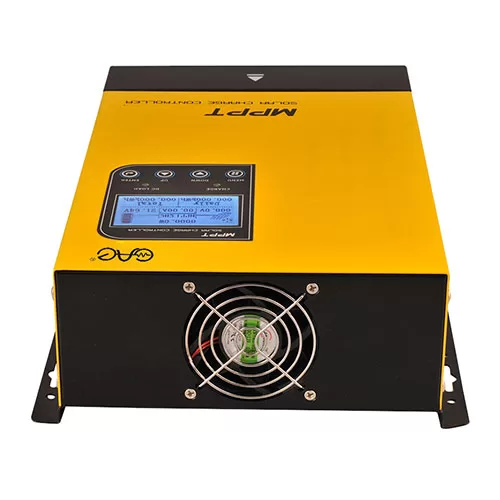

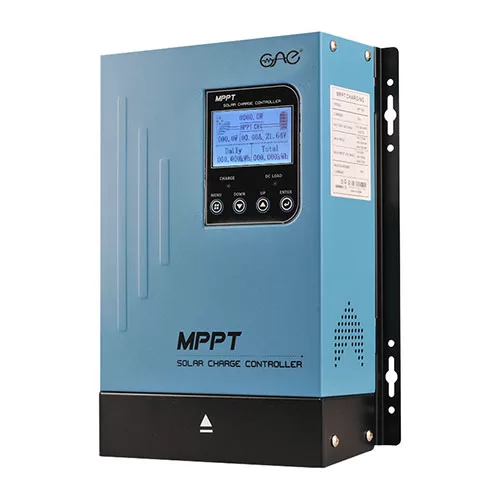

Ampinvt MP Series MPPT Solar Charge Controller

LCD&LED Display

Easy operation, details data display in real-time.

Intelligent Cooling Fan

Inbuilt real-time temperature monitor, <42℃C slow fan, >45℃C fast fan, protect inverter from overheat.

RS485 Communication

Communication protocol is available, capable of Wi-Fi remote monitoring and external screen control.

Fashion Air Hole Design

Big enough for air to go in, but small enough to protect inverter from dust.

Model	MP-20	MP-30	MP-40	MP-50	MP-60	MP-80A	MP-100	MP-120
Rated Current	20A	30A	40A	50A	60A	80A	100A	120A
Maximum Charging Current	22A	32A	42A	52A	62A	82A	102A	122A
Mppt Range Operating Voltage
12VDC	18VDC~80VDC
24VDC	30VDC~100VDC
36VDC	40VDC~100VDC
48VDC	60VDC~150VDC
96VDC	Not Available				120VDC~200VDC
Maximum Pv Array Power
12VDC	280W	420W	570W	700W	900W	1140W	1400W	1800W
24VDC	550W	840W	1130W	1400W	1700W	2260W	2800W	3400W
36VDC	840W	1260W	1710W	2100W	2700W	3420W	4200W	5400W
48VDC	1100W	1650W	2270W	2800W	3400W	4540W	5600W	6800W
96VDC	Not Available				7200W	9120W	11200W	14400W
Battery
Supportable Battery Type	Gel/SLA/AGM/Water/Lithium(lifepo4) battery
Charging Mode	Three Stages: Constand Current(mppt),equalizing Charge, Floating Charge
Maximum Efficiency	≥99%
Communication Portal
Communication	RS485, available for wifi box & external control screen
Physical
Dimension, DWH(MM)	315235150			360260190			440410200
G.W.(KGS)	3.5KGS			4.5KGS			12KGS
*Product Specifications Are Subject To Change Without Further Notice

Q1: Does Your Company Also Provide Other Solar Products Except Pure Sine Wave Inverter?

A1: Yes, we also provide other solar products, like MPPT Solar Controller, off grid solar inverter, low frequency & high frequency inverter, battery ,solar panel and other accessories related to the solar power system.

Q2: How to Choose a Right Inverter?

A2: Tell us your demand, then our sales will recommend a suitable inverter to you.

Q3: How About the Delivery Time?

A3: 5 days for sample; 7-15 days for bulk order.

Q4: What Is the Warranty of Inverter?

A4: 2 year warranty.

Q5: How to Solve the Technical Problem?

A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
