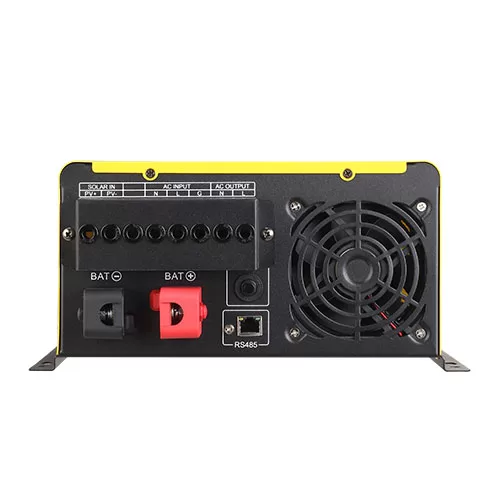

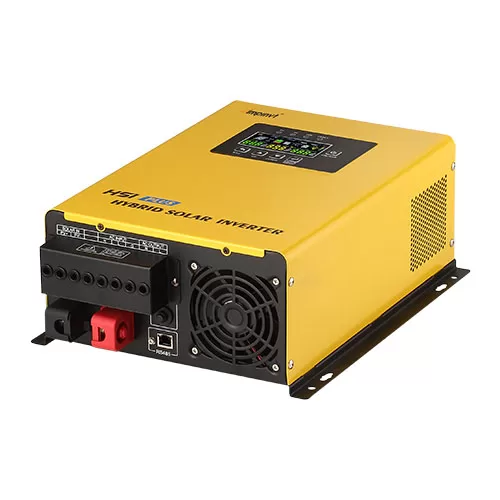

Ampinvt HSI Plus Series Hybrid Solar Inverter

Ampinvt HSI Plus Series Hybrid Solar Inverter
Ampinvt HSI Plus Series Hybrid Solar Inverter
Ampinvt HSI Plus Series Hybrid Solar Inverter
Ampinvt HSI Plus Series Hybrid Solar Inverter

1. Low frequency pure sine wave output.
2.Battery voltage: 12V/24V.
3. Built-in automatic 15A AC charger and automatic AC mains switcher.
4. Built with 30A/40A MPPT and effciency more than 99%.
5. High transfer efficiency is above 85%.
6. Built-in Toroidal transfermer, strong overload and impact resistance.
7. 4 working model can be select, charge current can be adjusted.
8. Compatible with sealed, gel, flooded, and lithium (lifepo4) batteries.

color:
INQUIRY
  • Description
  • Feature
  • Videos
  • FAQs
  • Download

Intelligent Control

  • Five smart control mode, auto switch for different demand.
  • RS485 communicational portal, for app & external screen control.

High Efficiency

  • Inverter transfer efficiency up to 85%.
  • Inbuilt MPPT efficiency more than 99%.

Charger

  • Inbuilt 15A AC charger.
  • Inbuilt 30A / 40A MPPT solar charger.

Model

HSIplus-102

HSIplus-122

Rated power 1000W 1200W
Surge power 3000W 3600W

AC Input & Output

Voltage 220VAC
Selectable Voltage Range 165-275VAC
Frequency Range 50Hz/60Hz automatic recognition
AC Voltage Regulation
(BATT. Mode)
(DC Batt.mode)220vac±3%
Transfer Time ≤5ms
Wave Form Pure Sine Wave
Transformer type Toroidal
Transfer efficiency ≥85%

Battery

Battery Voltage 12V/24V
Type Gel/SLA/AGM/Water/Lithium(lifepo4)  Battery
DC Charge Voltage 12~16VDC(12V)/24~32VDC(24V)
Overcharge Protection Battery voltage ≧16VDC (12V) ≧32VDC (24V), stop charging after 60s alarm

Solar Charge & Ac Charger

Maximum PVArray Open Circuit Voltage Max. 100V
Maximum Pv Array Power 450W(12V)/900W(24V) 600W(12V)/1200W(24V)
Maximum Ac Charge Current 15A
Maximum Solar Charge Current 30A MPPT 40A MPPT
Maximum Charging Current 45A 55A

Working Mode

01 mode AC mains priority
02 mode ECO mode
03 mode DC battery priority
04 mode Unattended mode

Communication Port

Type RS485, available for wifi box  & external control screen

Physical

Dimension,
D*W*H(MM)
396*294*145
G.W.(KGS) 10 11

Environment

Humidity 0~95%(NO CONDESNSATION)
Operating Temperature 0~55℃
Storage Temperature 0~55℃
*Product Specifications Are Subject To Change Without Further Notice

No information.

Q1: Does Your Company Also Provide Other Solar Products Except Pure Sine Wave Inverter?

A1: Yes, we also provide other solar products, like MPPT Solar Controller, off grid solar inverter, low frequency & high frequency inverter, battery ,solar panel and other accessories related to the solar power system.

Q2: How to Choose a Right Inverter?

A2: Tell us your demand, then our sales will recommend a suitable inverter to you.

Q3: How About the Delivery Time?

A3: 5 days for sample; 7-15 days for bulk order.

Q4: What Is the Warranty of Inverter?

A4: 2 year warranty.

Q5: How to Solve the Technical Problem?

A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
