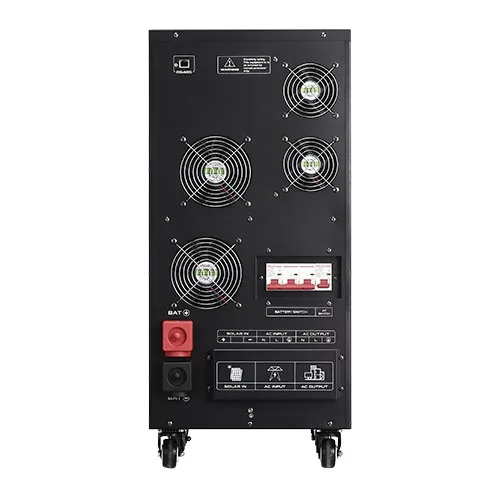

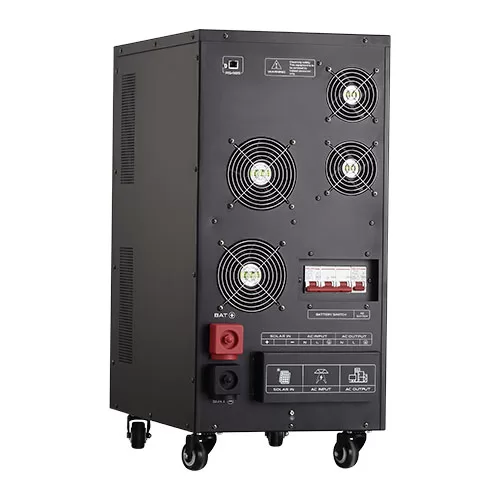

Ampinvt TDS Series Solar Inverter

Ampinvt TDS Series Solar Inverter
Ampinvt TDS Series Solar Inverter
Ampinvt TDS Series Solar Inverter
Ampinvt TDS Series Solar Inverter

1. Low frequency pure sine wave output.
2. Battery voltage: 48V/96V.
3. Built-in automatic 20A AC charger and automatic AC mains switcher.
4. Built with 100A MPPT and effciency more than 99%.
5. High transfer efficiency is above 85%.
6. Built-in Toroidal transfermer, strong overload and impact resistance.
7. 5 working model can be select, charge current can be adjusted.
8. Compatible with sealed, gel, flooded, and lithium (lifepo4) batteries.

  • Description
  • Feature
  • Videos
  • FAQs
  • Download

Intelligent Control

  • Five smart control mode, auto switch for different demand.
  • RS485 communicational portal, for app & external screen control.

High Efficiency

  • Inverter transfer efficiency up to 85%.
  • Inbuilt MPPT efficiency more than 99%.


  • Inbuilt 20A AC charger.
  • Inbuilt 100A MPPT solar charger.




Rated power 7KW 10KW
Surge power 21KW 30KW

AC Input & Output

Voltage 220VAC
Selectable Voltage Range 140-275VAC (220/230/240VAC)±4%
Frequency Range 50Hz/60Hz automatic recognition
AC Voltage Regulation
(BATT. Mode)
(DC Batt.mode)220vac±3%
Transfer Time ≤8ms
Wave Form Pure Sine Wave
Transformer type Toroidal
Transfer efficiency ≥85%


Battery Voltage 48/96VDC
Type Gel/SLA/AGM/Water/Lithium(lifepo4)  Battery
DC Charge Voltage 40~64VDC(48V)/ 80~128VDC(96V)

Solar charger &AC Charger

Maximum PVArray Open Circuit Voltage 200VDC
Maximum Pv Array Power 5600W(48V)/11500W(96V)
Maximum Ac Charge Current 20A
Maximum Solar Charge Current 100A MPPT
Maximum Charging Current 120A

Communication Portal

Type RS485, available for wifi box  & external control screen


G.W.(KGS) 80 85


Humidity 0~95%(NO CONDESNSATION)
Operating Temperature 0~60℃
Storage Temperature 0~60℃
*Product Specifications Are Subject To Change Without Further Notice

Q1: Does Your Company Also Provide Other Solar Products Except Pure Sine Wave Inverter?

A1: Yes, we also provide other solar products, like MPPT Solar Controller, off grid solar inverter, low frequency & high frequency inverter, battery ,solar panel and other accessories related to the solar power system.

Q2: How to Choose a Right Inverter?

A2: Tell us your demand, then our sales will recommend a suitable inverter to you.

Q3: How About the Delivery Time?

A3: 5 days for sample; 7-15 days for bulk order.

Q4: What Is the Warranty of Inverter?

A4: 2 year warranty.

Q5: How to Solve the Technical Problem?

A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
