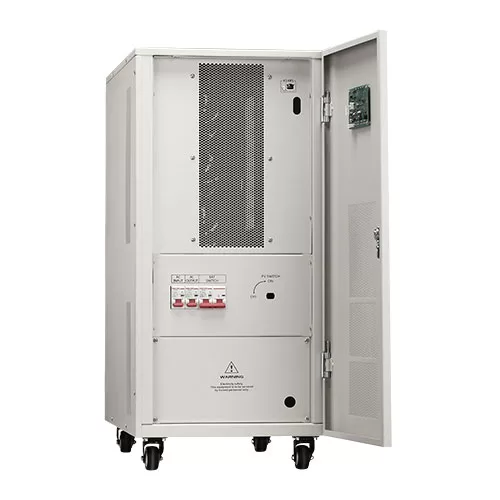

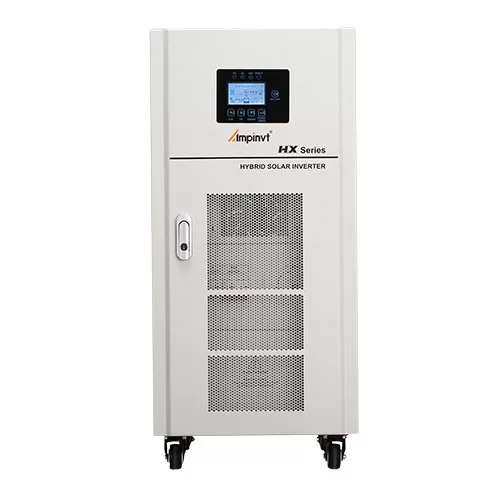

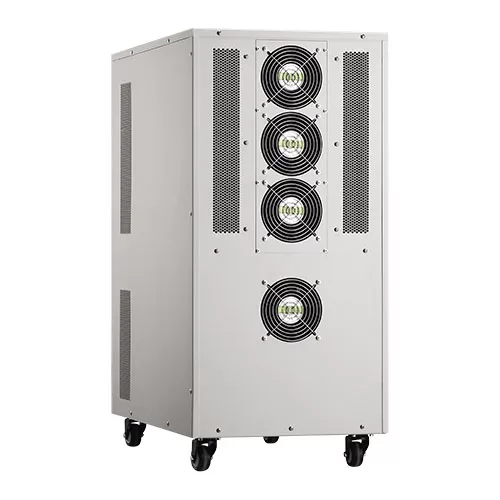

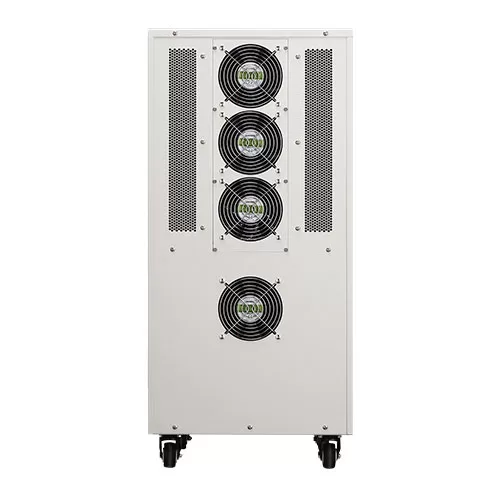

Ampinvt HX Series Hybrid Solar Inverter

Ampinvt HX Series Hybrid Solar Inverter
Ampinvt HX Series Hybrid Solar Inverter
Ampinvt HX Series Hybrid Solar Inverter
Ampinvt HX Series Hybrid Solar Inverter
Ampinvt HX Series Hybrid Solar Inverter

1. Low frequency pure sine wave output.
2. Battery voltage: 192/240V.
3. Built-in automatic 20A AC charger and automatic AC mains switcher.
4. Built with 100A MPPT and effciency more than 99%.
5. High transfer efficiency is above 85%.
6. Built-in Toroidal transfermer, strong overload and impact resistance.
7. 5 working model can be select, charge current can be adjusted.
8. Compatible with sealed, gel, flooded, and lithium (lifepo4) batteries.

  • Description
  • Feature
  • Videos
  • FAQs
  • Download

Intelligent Control

  • Five smart control mode, auto switch for different demand.
  • RS485 communicational portal, for app & external screen control.

High Efficiency

  • Inverter transfer efficiency up to 85%.
  • Inbuilt MPPT efficiency more than 99%.


  • Inbuilt 20A AC charger.
  • Inbuilt 100A MPPT solar charger.





Rated Power 15KW 20KW 30KW
Peak Power 45KW 60KW 90KW

Input & Output

DC Input Voltage 192V 240V
DC Input Voltage Range 168-240VDC 210-300VDC
AC Input Voltage Range 170-275VAC
AC Input Frequency 50Hz / 60Hz ±5Hz
Efficinecy ≥ 85%
Output Voltage (Inverter Mode) 220VAC ±3%
Output Frequency (Inverter Mode) 50Hz / 60Hz ±0.5Hz
Output Wave form Pure Sine Wave


Battery High Voltage Alarm > 240VDC > 300VDC
Battery Low Voltage alarm < 168VDC < 210VDC
Overload/High Temperature/Short Circuit Protection Automatic Shut-down


Switch time ≤ 8ms
Display LCD
Cooling System Forced Air Cooling, Intelligent Speed Regulation
Operating Mode AC Input Priority Mode / Battery Priority Mode / ECO Mode / Generator Mode / Unattended Mode
Communication RS-485


Charging Mode Constand Current/Floating Charge/MPPT
MPPT Efficiency ≥96.5%
Photovoltaic module efficiency ≤99%
PV. Open Circuit Voltage ≤650V
PV. Operating Voltage ≤550V
Maximum Charging Current 100A
Maximum Solar Input 22400W 28000W
Type Of Battery SLA Battery / AGM Battery / Lithium(lifepo4) Battery
AC Charging Current 20A

Working Environment

Temperature 0~55°C
Humidity 0~95%(No Condensation)


Product Size(mm) 683x383x831 683x383x891
N. W.(KGS) 129 136 161
* Product specifications are subject to change without notice.

Q1: Does Your Company Also Provide Other Solar Products Except Pure Sine Wave Inverter?

A1: Yes, we also provide other solar products, like MPPT Solar Controller, off grid solar inverter, low frequency & high frequency inverter, battery ,solar panel and other accessories related to the solar power system.

Q2: How to Choose a Right Inverter?

A2: Tell us your demand, then our sales will recommend a suitable inverter to you.

Q3: How About the Delivery Time?

A3: 5 days for sample; 7-15 days for bulk order.

Q4: What Is the Warranty of Inverter?

A4: 2 year warranty.

Q5: How to Solve the Technical Problem?

A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
